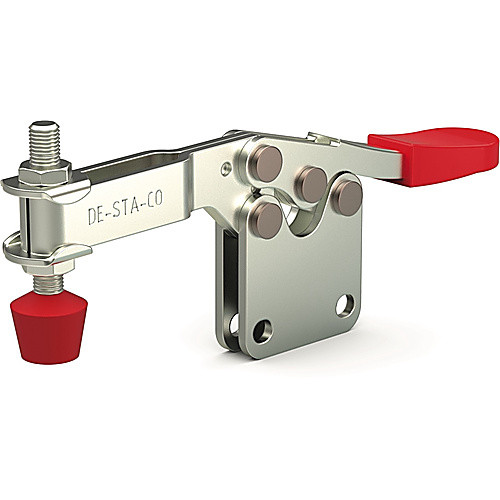

Toggle Clamp - Model 215-UB Horizontal Hold Down U-Shape Bar Style; 200 lbs Holding Capacity
| Style | Horizontal Handle Hold Down | Mounting Diameter | 0.24″ |
| Type | Toggle Clamp | Mounting Length | 1.06″ |
| Height Under Clamp Arm | 1.41″ | Overall Width | 0.48″ |
| Holding Capacity | 200 lbs | Spindle Size | M6 or 1/4″ |
| Overall Height | 1.91″ | Width Between Mounting Base | .20″ |
| Overall Length | 5.46″ | Base Length | 1.43″ |
| Spindle | .47″ | Maximum Clamping Thickness | 1.41″ |
| Thread Size | M6 | Toggle Lock Plus Lever | No |
| model_no | 215-UB | Bar Type | Straight |
| Includes | 90 | Clamp Arm Length | 2.25″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | USA |
Shipping Info
Package Length
6.00000
Package Width
4.00000
Package Height
.68000
Package Weight
0.3
