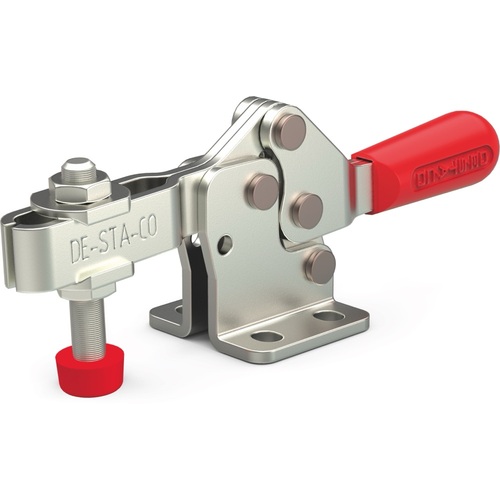

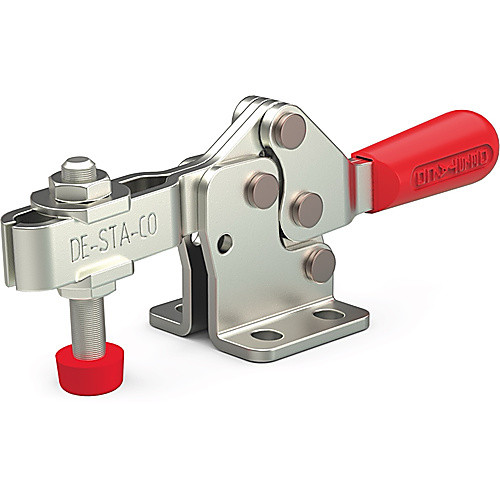

213-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.17″ |
| Arm | 1.06″ | Mounting Length | .53″ |
| Height Under Clamp Arm | .74″ | Mounting Width | .75″ |
| Holding Capacity | 150 lbs | Overall Width | 1.06″ |
| Overall Height | 1.39″ | Spindle Size | M5 or 10/32″ |
| Overall Length | 4.05″ | Base Length | 1″ |
| Spindle | .39″ | Maximum Clamping Thickness | .74″ |
| Thread Size | M5 | Toggle Lock Plus Lever | No |
| model_no | 213-U | Bar Type | Flanged |
| Includes | 90 | Clamp Arm Length | 1.42″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | Thailand |
Shipping Info
Package Length
6.50000
Package Width
4.00000
Package Height
1.06000
Package Weight
0.17
