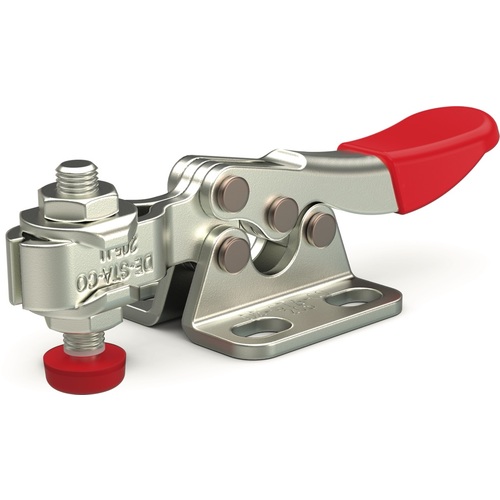

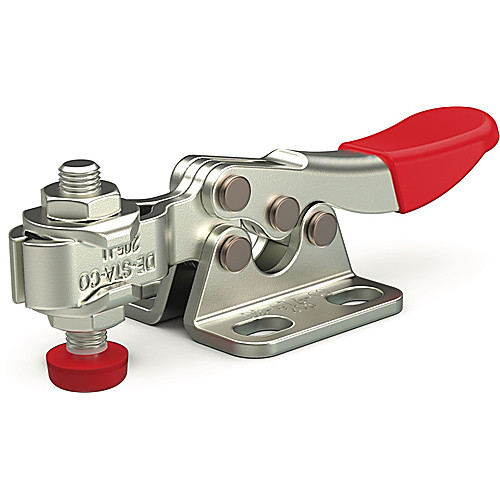

205-U HOLD DOWN ACTION
| Style | Horizontal Handle Hold Down | Bar Style | U-Shape |
| Type | Toggle Clamp | Mounting Diameter | 0.17″ |
| Arm | .95″ | Mounting Length | .44″ |
| Height Under Clamp Arm | .31″ | Mounting Width | .62″ |
| Holding Capacity | 60 lbs | Overall Width | 0.95″ |
| Overall Height | .67″ | Spindle Size | M4 or #8 |
| Overall Length | 2.71″ | Base Length | 1.68″ |
| Spindle | .32″ | Maximum Clamping Thickness | .31″ |
| Thread Size | M4 | Toggle Lock Plus Lever | No |
| model_no | 205-U | Bar Type | Flanged |
| Includes | 90 | Clamp Arm Length | 0.73″ |
Product Features
| Remarks | •Used in drilling, testing, gluing and other processing applications. •Suitable for use in welding, fixtures, in gauge manufacturing as well as in the woodworking industry. | Country of Origin | Thailand |
Shipping Info
Package Length
5.50000
Package Width
3.00000
Package Height
.95000
Package Weight
0.06
