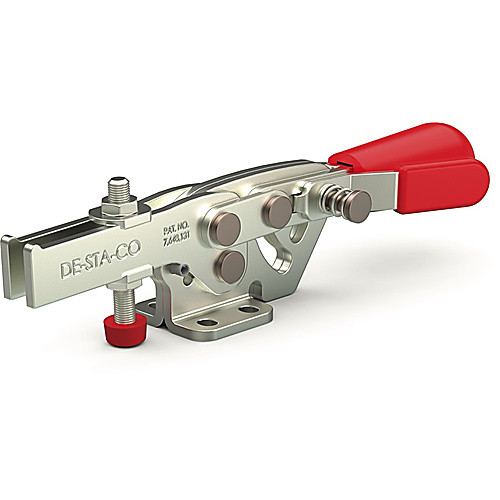

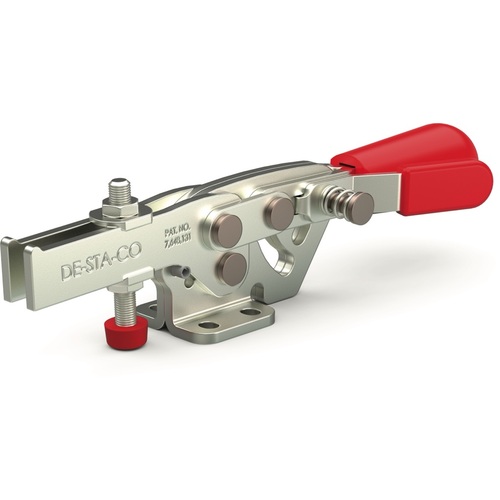

Toggle Clamp - Model 2013-UR Horizontal Hold Down U-Shape Bar Style; 295 lbs Holding Capacity
| Style | Horizontal with Release Lever Catch | Mounting Diameter | 0.17″ |
| Type | Toggle Clamp | Mounting Length | .53″ |
| Arm | 1.06″ | Mounting Width | .70″ |
| Height Under Clamp Arm | .75″ | Overall Width | 1.06″ |
| Holding Capacity | 295 lbs | Spindle Size | M5 or 10/32″ |
| Overall Height | 1.30″ | Base Length | 1″ |
| Overall Length | 5.87″ | Maximum Clamping Thickness | .75″ |
| Spindle | .39″ | Toggle Lock Plus Lever | Yes |
| Thread Size | M5 | Bar Type | Flanged |
| model_no | 2013-UR | Clamp Arm Length | 1.65″ |
| Bar Style | U-Shape |
Product Features
| Remarks | •New Generation Horizontal Clamps •Offers an average of twice the holding capacity of legacy models •Order numbers that end in "R" come with Locking Lever (R) | Country of Origin | USA |
Shipping Info
Package Length
6.00000
Package Width
1.24000
Package Height
.56000
Package Weight
0.418
