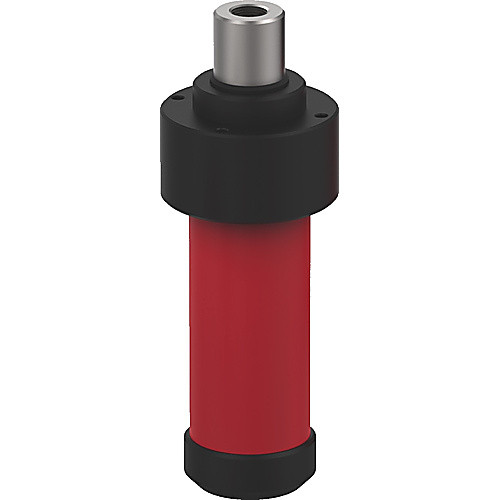

WK3000–50–6–1 WK–30KN–50MM STROKE

| Type | Pneumatic Power Cylinder | Model No | WK3000-50-6-1 |
| Style | Power Cylinder with ISO Piston Rod End | Arm Supplied | NA |
| Capacity | 4500 lbs | Spindle Supplied | NA |
| Clamping Force | 4500 lbs | Maximum Holding Force | NA |
| Thread Size | NA | Maximum Holding Torque | NA |
| Clamping Arm Length | NA | Clamping Torque | NA |
| Maximum Opening | NA | Clamp Arm Width | NA |
| Base Width | 4.3 | Clamp Arm Height | NA |
| Length | 4.3 | Clamp Height | 13.78 |
| Height | 13.78 | Stroke | 1.97 |
| Width | 5.12 | Distance from Bottom to Extend Port Center | NA |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 3.94 |
| Mount Diameter | 4.41 | Cylinder Rod Diameter | 2.56 |
| Mounting Length | NA | Cylinder Height | 13.78 |
| Mounting Width | NA | Distance from Base to Cylinder Rod Height | 13.78 |
| Overall Length | 4.3 | Distance from Base to Bevel Height | NA |
| Overall Height | 13.78 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 5.12 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 3.35 | Distance from Top to Bevel Length | NA |
| Port Size | G1/4 | Cylinder Rod Recess | 1.57 |
| Dowel Size | 25mm | Countersink for Mounting Screw | NA |
| Hole Size | M10, 16mm Deep | Arm Width | NA |
| Centerline Distance | NA | Operating Voltage | NA |
| Block Body Width | NA | Switching Power | NA |
| Travel During Rotation | NA | Voltage Drop | NA |
| Vertical Clamp Stroke | 0.24 | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 2.56 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | 23°F-167°F |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Two stage power cylinder |
| Maximum Arm Length | NA | Series | Type WK |
| Mounting Hole to Piston Rod Centerline | 2.205 | For Use With | NA |
| Cylinder Width | 3.74 | Weight | 29.5 lbs |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
29.547
