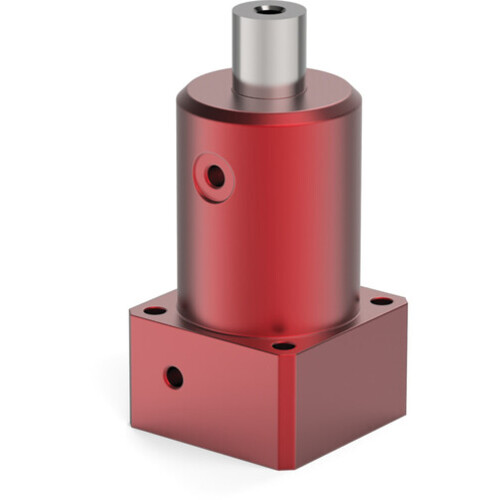

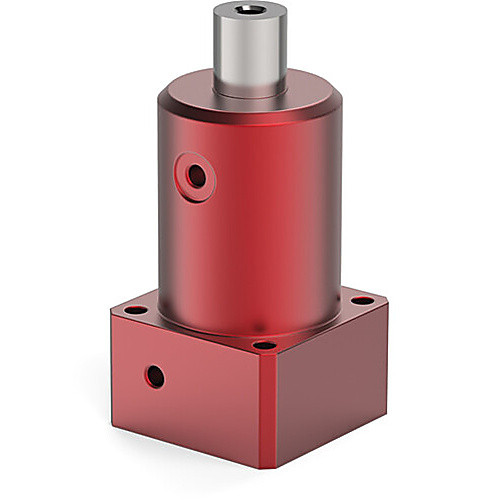

035–250–290 PNEUMATIC LESS ARM
| Type | Pneumatic Power Clamp | Model No | 035-250-290 |
| Style | Pneumatic Swing Clamp | Arm Supplied | NA |
| Capacity | 69 lbs | Spindle Supplied | NA |
| Clamping Force | 69 lbs | Maximum Holding Force | 69 lbs |
| Thread Size | NA | Maximum Holding Torque | NA |
| Clamping Arm Length | NA | Clamping Torque | NA |
| Maximum Opening | 90° | Clamp Arm Width | NA |
| Base Width | 2.68 | Clamp Arm Height | NA |
| Length | 2.68 | Clamp Height | 3.93 |
| Height | 3.93 | Stroke | 1.13 |
| Width | 2.68 | Distance from Bottom to Extend Port Center | 2.05 |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 0.65 |
| Mount Diameter | 0.33 | Cylinder Rod Diameter | 0.79 |
| Mounting Length | 2.68 | Cylinder Height | 3.93 |
| Mounting Width | 2.68 | Distance from Base to Cylinder Rod Height | 3.93 |
| Overall Length | 2.68 | Distance from Base to Bevel Height | NA |
| Overall Height | 3.93 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 2.68 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 0.33 | Distance from Top to Bevel Length | NA |
| Port Size | 1/8 NPT | Cylinder Rod Recess | NA |
| Dowel Size | NA | Countersink for Mounting Screw | NA |
| Hole Size | 0.33 | Arm Width | NA |
| Centerline Distance | 2.17 | Operating Voltage | NA |
| Block Body Width | 2.68 | Switching Power | NA |
| Travel During Rotation | 0.63 | Voltage Drop | NA |
| Vertical Clamp Stroke | 0.51 | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 1.34 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | 176°F max |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Swing 90° and clamp down |
| Maximum Arm Length | 6.36 | Series | 035 |
| Mounting Hole to Piston Rod Centerline | 1.09 | For Use With | 036 Series Arms |
| Cylinder Width | 2.68 | Weight | 1.9 lbs |
Product Features
| Country of Origin | Taiwan |
Shipping Info
Package Weight
1.9
