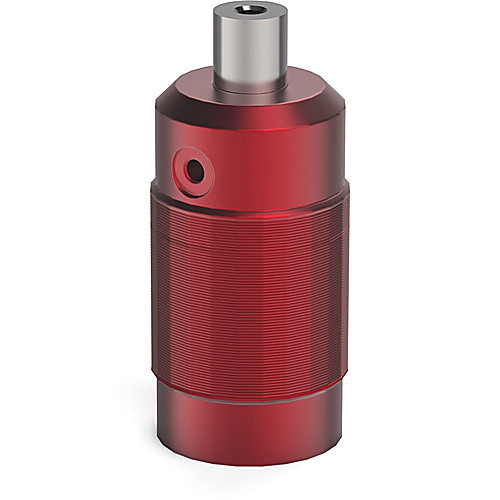

035–140–290 PNEUMATIC LESS ARM
| Type | Pneumatic Power Clamp | Model No | 035-140-290 |
| Style | Pneumatic Swing Clamp | Arm Supplied | NA |
| Capacity | 60 lbs | Spindle Supplied | NA |
| Clamping Force | 60 lbs | Maximum Holding Force | 60 lbs |
| Thread Size | 2-1/4-16 | Maximum Holding Torque | NA |
| Clamping Arm Length | NA | Clamping Torque | NA |
| Maximum Opening | 90° | Clamp Arm Width | NA |
| Base Width | 2.16 | Clamp Arm Height | NA |
| Length | 2.16 | Clamp Height | 4.04 |
| Height | 4.04 | Stroke | 1.2 |
| Width | 2.16 | Distance from Bottom to Extend Port Center | 2.8 |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 0.48 |
| Mount Diameter | 2-1/4-16 | Cylinder Rod Diameter | 0.63 |
| Mounting Length | 2.16 | Cylinder Height | 4.04 |
| Mounting Width | 2.16 | Distance from Base to Cylinder Rod Height | 4.04 |
| Overall Length | 2.16 | Distance from Base to Bevel Height | NA |
| Overall Height | 4.04 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 2.16 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 2-1/4-16 | Distance from Top to Bevel Length | NA |
| Port Size | 1/8 NPT | Cylinder Rod Recess | NA |
| Dowel Size | NA | Countersink for Mounting Screw | NA |
| Hole Size | NA | Arm Width | NA |
| Centerline Distance | NA | Operating Voltage | NA |
| Block Body Width | NA | Switching Power | NA |
| Travel During Rotation | 0.57 | Voltage Drop | NA |
| Vertical Clamp Stroke | 0.63 | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 1.08 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | 176°F max |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Swing 90° and clamp down |
| Maximum Arm Length | 4.73 | Series | 035 |
| Mounting Hole to Piston Rod Centerline | NA | For Use With | 036 Series Arms |
| Cylinder Width | 2.16 | Weight | 1.31 lbs |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.4
