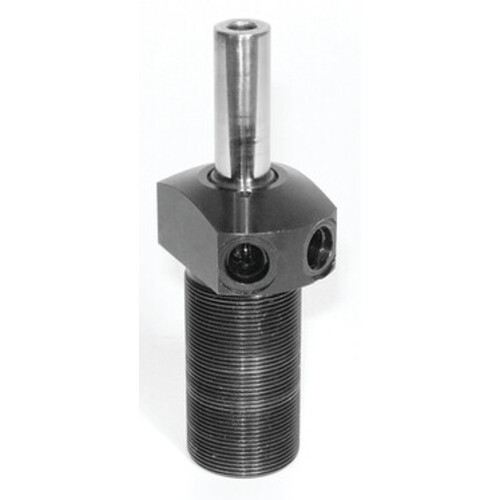

030–1-D–1100 1100LB LH SWING DBL
| Type | Hydraulic Power Clamp | Model No | 030-1-D-1100 |
| Style | Hydraulic Swing Clamp | Arm Supplied | NA |
| Capacity | 1100 lbs | Spindle Supplied | NA |
| Clamping Force | 1100 lbs | Maximum Holding Force | 1100 lbs |
| Thread Size | 1-3/8-18UN | Maximum Holding Torque | NA |
| Clamping Arm Length | Not Supplied | Clamping Torque | NA |
| Maximum Opening | 90° | Clamp Arm Width | NA |
| Base Width | 1.5 | Clamp Arm Height | NA |
| Length | 1.87 | Clamp Height | 5.97 |
| Height | 5.97 | Stroke | 0.89 |
| Width | 1.5 | Distance from Bottom to Extend Port Center | 2.98 |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 0.6 |
| Mount Diameter | 1-3/8-18UN | Cylinder Rod Diameter | 0.629 |
| Mounting Length | 1.87 | Cylinder Height | 5.97 |
| Mounting Width | NA | Distance from Base to Cylinder Rod Height | 2.39 |
| Overall Length | 1.87 | Distance from Base to Bevel Height | NA |
| Overall Height | 5.97 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 1.5 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 1-3/8-18UN | Distance from Top to Bevel Length | NA |
| Port Size | SAE-4 | Cylinder Rod Recess | NA |
| Dowel Size | NA | Countersink for Mounting Screw | NA |
| Hole Size | NA | Arm Width | NA |
| Centerline Distance | NA | Operating Voltage | NA |
| Block Body Width | NA | Switching Power | NA |
| Travel During Rotation | 0.5 | Voltage Drop | NA |
| Vertical Clamp Stroke | 0.39 | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 0.75 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | NA |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Swing 90° and clamp down |
| Maximum Arm Length | 6.02 | Series | 030 |
| Mounting Hole to Piston Rod Centerline | NA | For Use With | 031 Series Arms |
| Cylinder Width | 1.5 | Weight | 1.7 lbs |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.7
