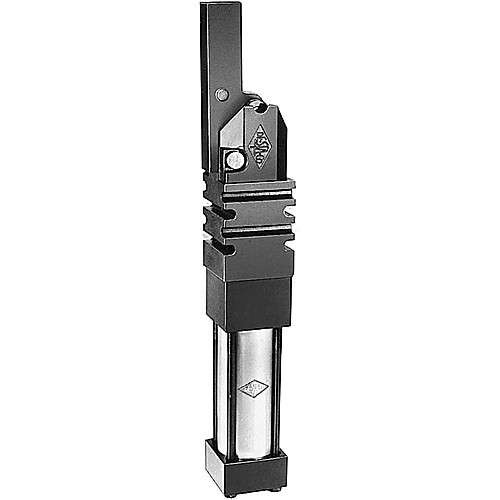

870 POWER ARM CLAMP 180' ARM

| Type | Pneumatic Power Clamp | Model No | 870-2 |
| Style | Power Clamp with Vertical Clamp Arm | Arm Supplied | 180° Arm Style |
| Capacity | 2000 lbs | Spindle Supplied | NA |
| Clamping Force | 60Nm at 5bar | Maximum Holding Force | 2000 lbs |
| Thread Size | NA | Maximum Holding Torque | 260 Nm |
| Clamping Arm Length | 2.49 | Clamping Torque | 60 Nm at 5 bar |
| Maximum Opening | 112° | Clamp Arm Width | 0.78 |
| Base Width | 2.13 | Clamp Arm Height | 1 |
| Length | 2.13 | Clamp Height | 13.83 |
| Height | 13.83 | Stroke | NA |
| Width | 2.13 | Distance from Bottom to Extend Port Center | 0.7 |
| Throat Depth | NA | Distance from Top to Clamp Port Center | 8.63 |
| Mount Diameter | 0.28 | Cylinder Rod Diameter | NA |
| Mounting Length | 2.13 | Cylinder Height | 13.83 |
| Mounting Width | 2.13 | Distance from Base to Cylinder Rod Height | NA |
| Overall Length | 2.13 | Distance from Base to Bevel Height | NA |
| Overall Height | 13.83 | Distance from Center to Cylinder Mount Center | NA |
| Overall Width | 2.13 | Distance from Edge to Center of Tapped Hole | NA |
| Bore Size | 2 | Distance from Top to Bevel Length | NA |
| Port Size | G1/8 | Cylinder Rod Recess | NA |
| Dowel Size | NA | Countersink for Mounting Screw | NA |
| Hole Size | NA | Arm Width | 0.78 |
| Centerline Distance | 1 | Operating Voltage | NA |
| Block Body Width | 2.13 | Switching Power | NA |
| Travel During Rotation | 112° | Voltage Drop | NA |
| Vertical Clamp Stroke | NA | Indicator | NA |
| Distance Body Side to Piston Rod Centerline | 1.065 | Connection | NA |
| Distance Piston Rod to End Clamp Arm | NA | Temperature Range | -14°F to 194°F |
| Distance Spindle Hole to End Clamp Arm | NA | Function | Hold down clamp with arm in vertical position |
| Maximum Arm Length | 2.49 | Series | 870 |
| Mounting Hole to Piston Rod Centerline | NA | For Use With | 810151, 810153, 810155, 810157 |
| Cylinder Width | 2.13 | Weight | 6.6 lbs |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
7
