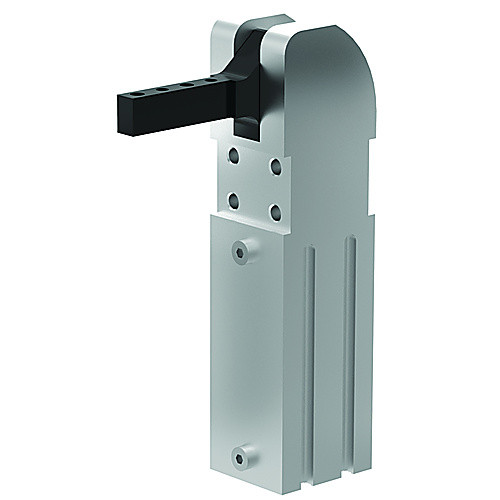

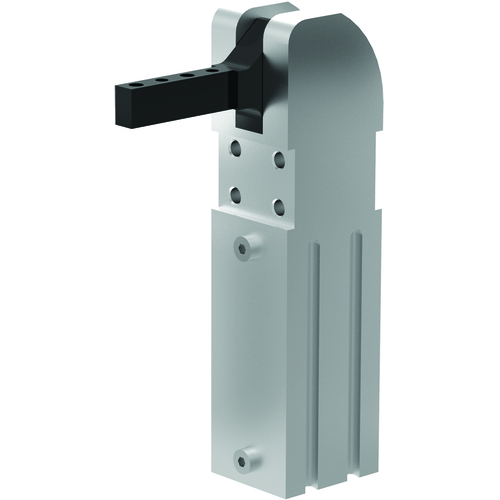

Model 81L25–14100 - Vertical Arm–708 in-lbf Maximum Holding Torque - Pneumatic Enclosed Clamp

| Type | Pneumatic Enclosed Clamp | Overall Width | 35 mm |
| Style | Enclosed Power Clamp | Port Size | M5 |
| Clamping Force | Vertical | Dowel Size | 4 mm |
| Maximum Opening | 90° | Hole Size | 6.5 mm |
| Base Width | 1.38″ | Centerline Distance | 20 mm |
| Length | 1.57″ | Cylinder Width | 40 mm |
| Height | 5.94″ | Model No | 81L25-14100 |
| Mount Diameter | M6 × 8 mm | Maximum Holding Torque | 59.0 in-ft/lb |
| Mounting Length | 15 mm | Clamping Torque | 12.50 in-ft/lb |
| Mounting Width | 20 mm | Series | 82L25-4430 |
| Overall Height | 151 mm | Weight | 1.25 lbs |
Product Features
| Remarks | •81L
•Compact design for clamping, holding, gripping and positioning of metal sheets and other parts in jigs and handling systems
•Features integrated sensor-ready cylinder
•Long life cycle
•High holding torques, low weight
•Clamp arm features mounting holes for additional tooling | Country of Origin | USA |
Shipping Info
Package Length
7.90000
Package Width
2.60000
Package Height
2.60000
Package Weight
1.3
