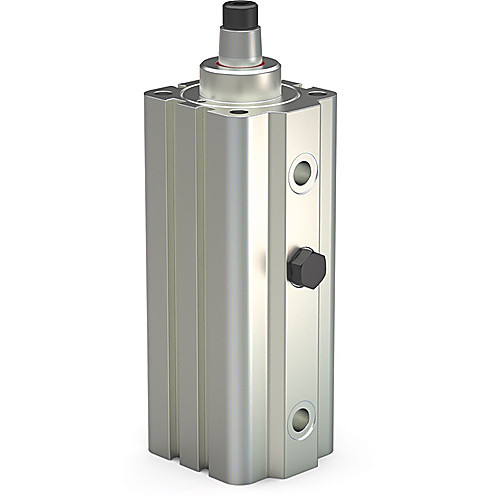

89R400102 PNEUMATIC SWING CYLINDER
| Type | Pneumatic Swing Clamp | Vertical Clamp Stroke | 0.39 |
| Style | Adjustable Swing Direction | Distance Body Side to Piston Rod Centerline | 1.08 |
| Capacity | 85 lbs | Maximum Arm Length | 3.74 |
| Clamping Force | 85 lbs | Mounting Hole to Piston Rod Centerline | 0.79 |
| Maximum Opening | 90° | Cylinder Width | 2.5 |
| Base Width | 2.5 | Model No | 89R40-010-2 |
| Length | 2.5 | Maximum Holding Force | 85 lbs |
| Height | 6.49 | Clamp Height | 6.49 |
| Width | 2.5 | Stroke | 1.24 |
| Mount Diameter | M8 | Distance from Bottom to Extend Port Center | 0.83 |
| Mounting Length | 1.57 | Distance from Top to Clamp Port Center | 0.94 |
| Mounting Width | 1.57 | Cylinder Rod Diameter | 0.63 |
| Overall Length | 2.5 | Cylinder Height | 6.49 |
| Overall Height | 6.49 | Distance from Base to Cylinder Rod Height | 6.49 |
| Overall Width | 2.5 | Temperature Range | 140°F Max |
| Bore Size | 1.57 | Function | Swing 90° and clamp down |
| Port Size | G1/8 | Series | 89R |
| Hole Size | M8 | For Use With | 8JG and 8MA arms |
| Travel During Rotation | 0.85 | Weight | 2.09 lbs |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.1
