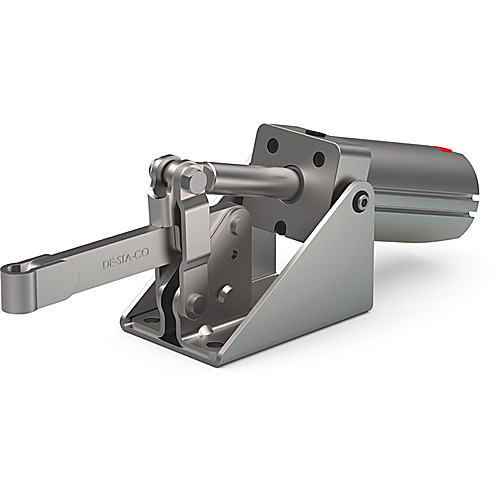

810-SE HOLD-DOWN ACTION CLAMP WITH
| Type | Pneumatic Toggle Clamp | Travel During Rotation | 99° |
| Style | Pneumatic Hold Down Clamp | Distance Body Side to Piston Rod Centerline | 1.43 |
| Capacity | 750 lbs | Maximum Arm Length | 3.57 |
| Clamping Force | 702 lbs at 5bar | Cylinder Width | 3.2 |
| Clamping Arm Length | 3.57 | Model No | 810-SE |
| Maximum Opening | 99° | Arm Supplied | Solid Arm |
| Base Width | 4.22 | Maximum Holding Force | 750 lbs |
| Length | 11.7 | Clamp Arm Width | 0.31 |
| Height | 3.79 | Clamp Arm Height | 0.79 |
| Width | 2.86 | Clamp Height | 3.79 |
| Mount Diameter | 0.34 | Distance from Bottom to Extend Port Center | 1.79 |
| Mounting Length | 1.25 | Cylinder Height | 3.79 |
| Mounting Width | 1.78 | Arm Width | 0.31 |
| Overall Length | 11.7 | Temperature Range | -14°F to 194°F |
| Overall Height | 3.79 | Function | Hold down action |
| Overall Width | 2.86 | Series | 810 |
| Bore Size | 1.57 | For Use With | 810 Series Switches |
| Port Size | G1/8 | Weight | 4.07 lbs |
| Hole Size | 0.34 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
5
