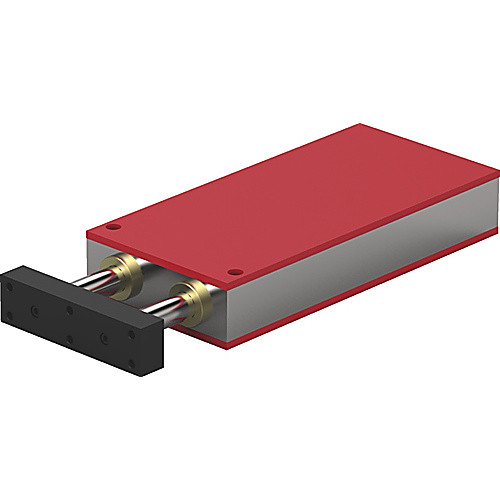

WR2000–120–7 WR–20KN–120MM STROKE
| Type | Pneumatic Power Cylinder | Block Body Width | 1.57 |
| Style | Power Cylinder with Dual Piston Rod End Plate | Vertical Clamp Stroke | 0.27 |
| Capacity | 4500 lbs | Distance Body Side to Piston Rod Centerline | 2.95 |
| Clamping Force | 4500 lbs | Mounting Hole to Piston Rod Centerline | 2.559 |
| Base Width | 2.35 | Cylinder Width | 1.567 |
| Length | 5.91 | Model No | WR2000-120-7 |
| Height | 16.81 | Clamp Height | 16.81 |
| Width | 2.35 | Stroke | 4.72 |
| Mounting Length | 5.12 | Distance from Top to Clamp Port Center | 16.81 |
| Mounting Width | 0.79 | Cylinder Height | 16.81 |
| Overall Length | 5.91 | Distance from Base to Cylinder Rod Height | 16.81 |
| Overall Height | 16.81 | Distance from Edge to Center of Tapped Hole | 0.394 |
| Overall Width | 2.35 | Temperature Range | 23°F-167°F |
| Bore Size | 2.76 | Function | Two stage power cylinder |
| Port Size | G1/4 | Series | Type WR |
| Hole Size | 12.5mm | Weight | 46.3 lbs |
| Centerline Distance | 2.56 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
46.305
