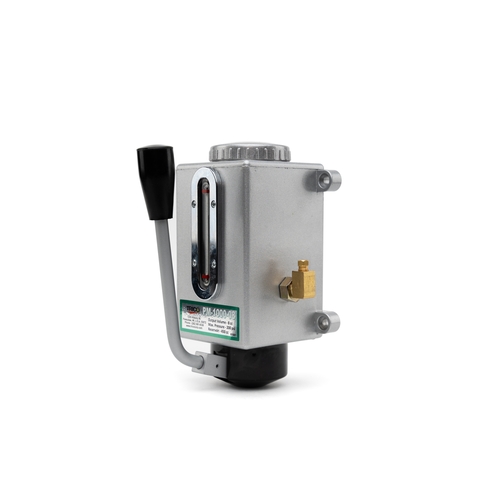

PM-1000-08 MANUAL PUMP
| Type | Central Lubrication System | Maximum Operating Pressure (PSI) | 200 |
| Pump Type | Manual Piston Pump | Mounting Type | Vertical |
| Reservoir Capacity | 450 cc | Model No | PM-1000-08 |
| Output per Stroke (cc) | 8 | Low Level Alarm and Press Gauge | No |
Product Features
| Remarks | •Manual Cyclic Pumps •PM Series pumps are used in applications where a fixed output of lubricant is desired. With the PM-10 series, the leverage of the pump handle enables the unit to deliver a higher pressure than most models, providing the ability to lubricate points having some back pressure. With the PM-20 series, lubricant output takes place upon release of the handle using spring discharge to assure the correct amount of lubricant is applied. These pumps are commonly used with meter units in single or multiple point applications. •Aluminum die cast reservoir provides long life •Outputs to 8 cc/stroke •Sight gauge provides liquid level observation •Large fill port for easy adding of lubricant •Drop-in fill port keeps oil clean | Country of Origin | Taiwan |
Shipping Info
Shipping Notes
No restrictions or additional charges for UPS Ground or UPS Air.
Package Length
5.10000
Package Width
5.80000
Package Height
9.90000
Package Weight
3.45
