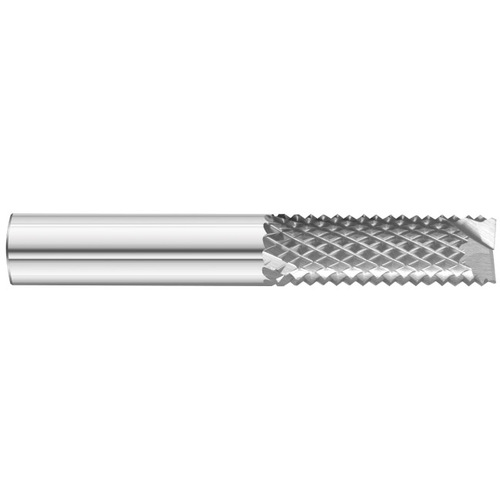

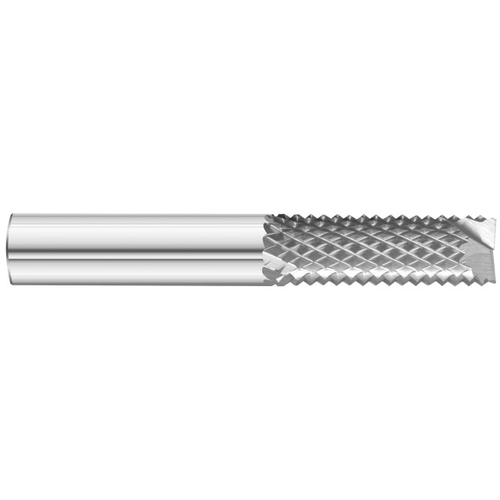

‎3/8″ × 3/8″ × 1″ × 2-1/2″ Carbide Router Style C - End Mill Type End Cu-List #2600

Item # FUL 26377

Brand: Fullerton Tool

MFG #: 26377

Legacy Part #: FT8726377

Trade Name: 2600 MATRX Drill

Cutting Diameter (DC)

3/8″

Applicable Material

| Other Non-Metallic Materials |

Depth of Cut Maximum (APMX)

1″

Cutting Edge Material

Carbide

Overall Length (OAL)

‎2-1/2″

Style

Style C - End Mill Type End Cu

Flute Count (NOF)

Series/List #

2600

Connection Diameter Machine Side (DCONMS)

3/8″

Product Features

Remarks

Configured with various end geometries including burr style, end mill style, 135 degree drill point and non-cutting end

Style A - No End Cut - Used for edge or where the end of the router is not in contact with the work piece.

Style B - Burr Style End Cut -Used when bottom cutting to produce an even, smooth surface with a square corner.

Style C - End Mill End Cut - Designed for bottom cutting where smooth surface and square corners are required.

Style D - 135° Drill Point - Designed for plunging through the work piece before routing operation begins.

Single End

Dura Carb (Micrograin)

Shank Tolerance: h6 Tolerance

Cutting Diameter Tolerance: +.000 -.005

Country of Origin

USA

Package Weight

.130
