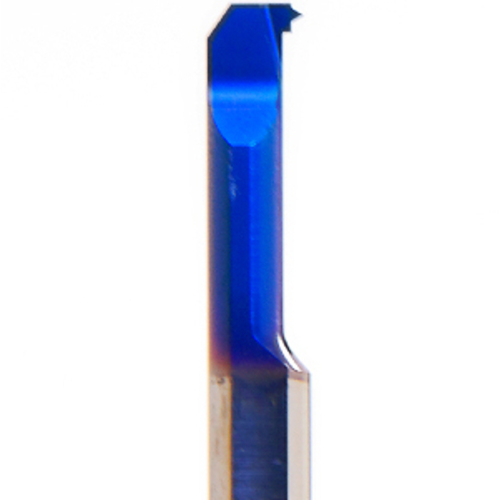

MIL 5 L15 A60 BMK
| Threads per Inch Minimum (TPIN) | 20 | Overall Length (OAL) | 50.8 mm |
| Threads per Inch Maximum (TPIX) | 24 | Minimum Bore Diameter (DMIN) | 5.08 mm |
| Cutting Direction (HAND) | Left Hand | Grade | BMK |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Size | H5 |
| Thread Angle | 60 Degrees | Cutting Length | 14.99 mm |
| Applicable Material | | General Purpose | | Internal/External | Internal |
| Measurement Type | Metric |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0320
