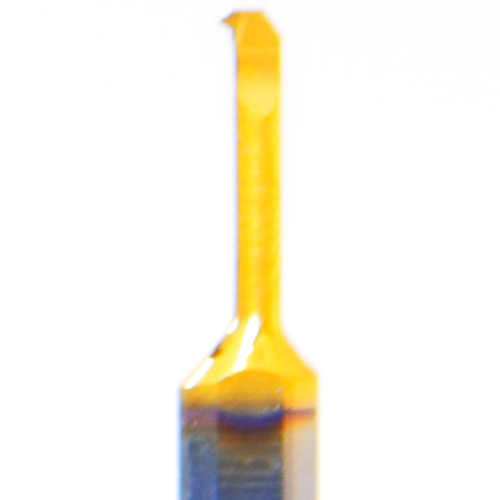

MIR 1.5 L6 A60 BXC
| Threads per Inch Minimum (TPIN) | 56 | Measurement Type | Metric |
| Threads per Inch Maximum (TPIX) | 72 | Overall Length (OAL) | 38.1 mm |
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 1.52 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees | Size | H3 |
| Applicable Material | | Stainless Steel | | Cutting Length | 6.1 mm |
| Coating | TiN | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
0.013
