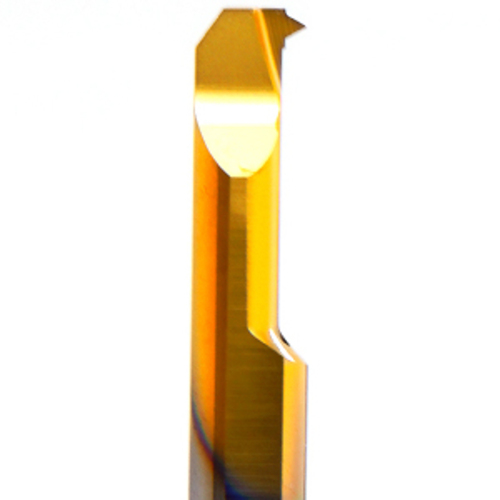

MIL 6 L15 A60 BXC
| Threads per Inch Minimum (TPIN) | 16 | Measurement Type | Metric |
| Threads per Inch Maximum (TPIX) | 24 | Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Left Hand | Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees | Size | H6 |
| Applicable Material | | Stainless Steel | | Cutting Length | 14.99 mm |
| Coating | TiN | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
