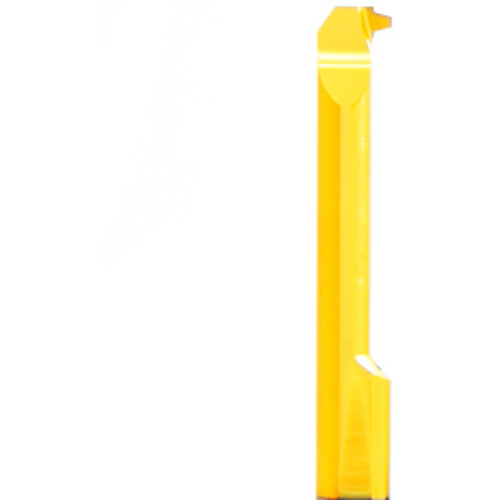

MIL 10 L45 4 TR BXC
| Thread Pitch (TP) | 04.00mm | Overall Length (OAL) | 104.14 mm |
| Cutting Direction (HAND) | Left Hand | Minimum Bore Diameter (DMIN) | 11.43 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 30 Degrees | Size | H10 |
| Applicable Material | | Stainless Steel | | Cutting Length | 44.96 mm |
| Coating | TiN | Thread Size | 16 × 4 | 18 × 4 | 20 × 4 |
| Measurement Type | Metric | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.2190
