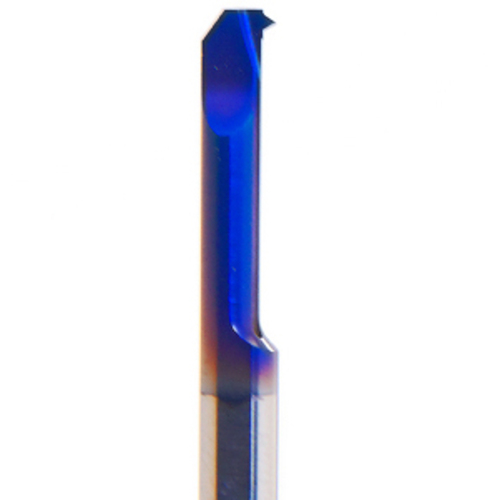

MIL 4 L15 32 UN BMK
| Cutting Direction (HAND) | Left Hand | Grade | BMK |
| Cutting Edge Material | Carbide | Threads per Inch (TPI) | 32 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees | Size | H4 |
| Applicable Material | | General Purpose | | Cutting Length | 14.99 mm |
| Measurement Type | Metric | Thread Size | 12 – 32 |
| Overall Length (OAL) | 50.8 mm | Internal/External | Internal |
| Minimum Bore Diameter (DMIN) | 4.06 mm |
Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
.0250
