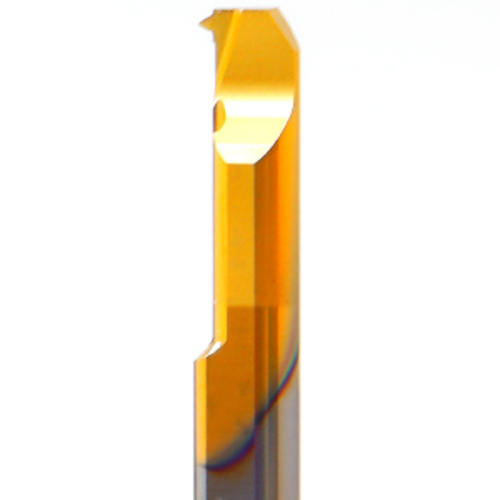

MIR 6 L18 18UN BXC
| Cutting Direction (HAND) | Right Hand | Minimum Bore Diameter (DMIN) | 6.1 mm |
| Cutting Edge Material | Carbide | Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Threads per Inch (TPI) | 18 |
| Thread Angle | 60 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Stainless Steel | | Size | H6 |
| Coating | TiN | Cutting Length | 18.03 mm |
| Measurement Type | Metric | Thread Size | 5/16 - 18 |
| Overall Length (OAL) | 50.8 mm | Internal/External | Internal |
Product Features
| Country of Origin | Israel |
