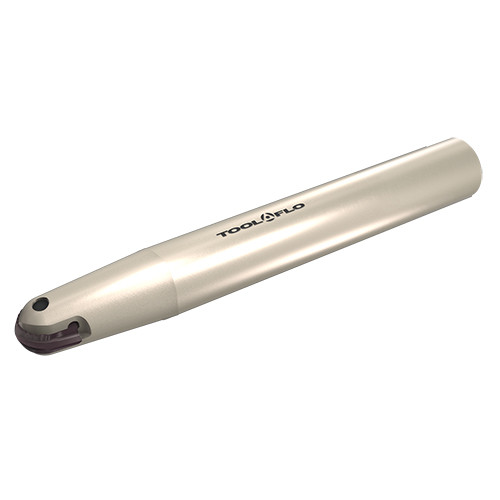

TBNSC-100-94WT750
Indexable End Mill; 40 mm Dia. × 13 mm LOC × 1″ Shank Dia. × 9.437″ OAL ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 40 mm | Weight of Item (WT) | 0.73 Kg |
| Cutting Diameter (DC) | 3/4″ | Head Length (LH) | 3″ |
| Cutting Item Count (CICT) | 4 | Tool Type | 90° indexable endmills |
| Depth of Cut Maximum (APMX) | 13 mm | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 9.437″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Ext Milling Rigid Lock | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ | Body Material | Steel |
| Master Insert Identification (MIID) | TBNR750 | TBRR750 | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | External Steel Tapered Shank Ball Nose Cutter Body with Coolant for RigidLock Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
