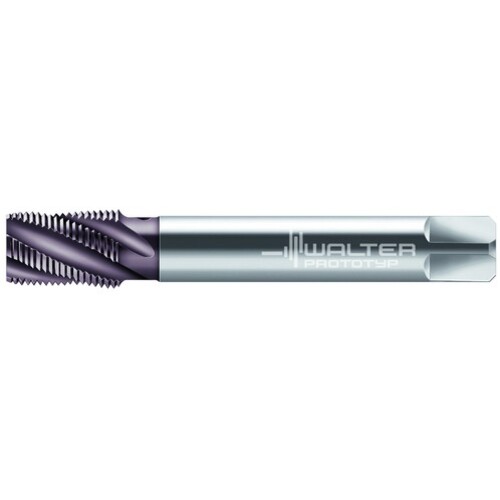

3/4″-14 NPT 5 Flute HSS-E TiCN Modified Bottoming Pipe Tap
Additional Tariff Surcharge of 8 %
| Tool Type | Pipe Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 3/4″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 14 | Applicable Material | | Steel | Super-Alloys / Titanium | |
| Thread Standard | NPT | Coating | TiCN |
| Usable Length (LU) | 26 mm | Cutting Edge Material | HSSE |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Flute Length | 41 mm |
| Overall Length (OAL) | 140 mm | Series/List # | 2546706 |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Thread Size | 3/4″ - 14 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
