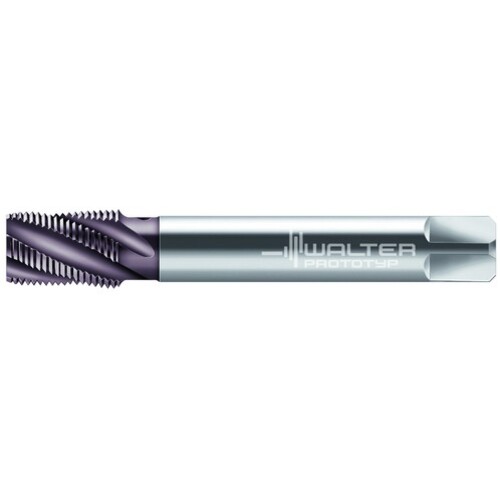

1″-11.5 NPT 5 Flute HSS-E TiCN Modified Bottoming Pipe Tap
Additional Tariff Surcharge of 8 %
| Tool Type | Pipe Tap | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 1″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Super-Alloys / Titanium | |
| Thread Standard | NPT | Coating | TiCN |
| Usable Length (LU) | 31 mm | Cutting Edge Material | HSSE |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Metric |
| Flute Count (NOF) | 5 | Flute Length | 51 mm |
| Overall Length (OAL) | 150 mm | Series/List # | 2546706 |
| Connection Diameter Machine Side (DCONMS) | 28 mm | Thread Size | 1″ - 11.5 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.011
