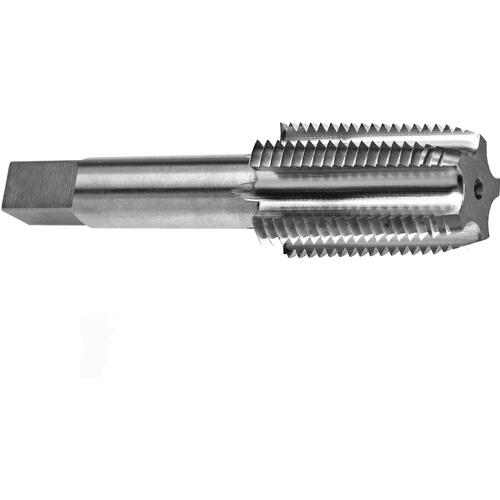

1/2-14 NPT 5FL INT .480 SM SHK GRD THD TAPER PIPE TAPS 118GI
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/2″ | Chamfer | Plug |
| Threads per Inch (TPI) | 14 | Coating | Uncoated |
| Thread Standard | NPT | Cutting Edge Material | HSS |
| Usable Length (LU) | 1-3/8″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/8″ | Flute Length | 1-3/8″ |
| Thread Cutting Part Length (THL) | 1-3/8″ | Square Size | 0.360″ × 9/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.36″ | Series/List # | 118GI |
| Flute Type | Straight | Thread Size | 1/2″ - 14 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.575
