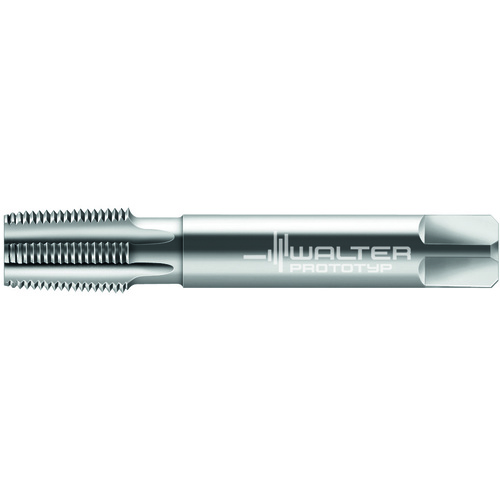

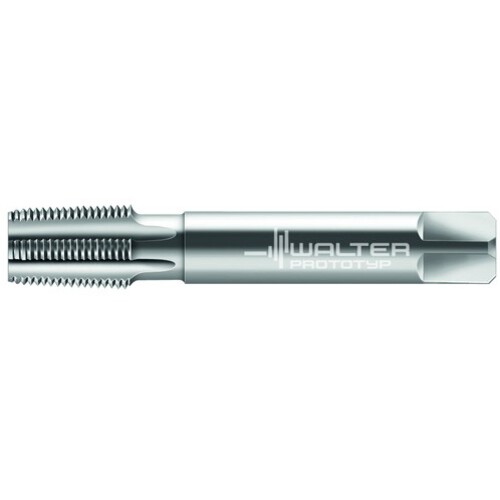

1/2-14 NPT 4 Flute HSS Pipe Tap
25167-NPT1/2
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | 1/2″ | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 14 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NPT | Coating | Uncoated |
| Flute Helix Angle (FHA) | CW|30 Degrees | Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 4-59/64″ | Flute Length | 1-11/16″ |
| Thread Cutting Part Length (THL) | 1-1/32″ | Standard | PWZ-NORM |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Thread Size | 1/2″ - 14 |
| Flute Type | Straight |
Product Features
| Family Description | 25167-NPT1/2 | Country of Origin | India |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.528
