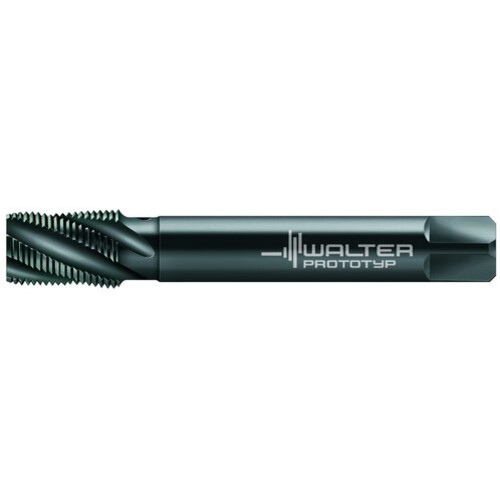

3/4-14 NPTF 5 Flute HSS VAP Pipe Tap
| Thread Diameter Size (TDZ) | 3/4″ | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 14 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NPTF | Cutting Edge Material | HSS |
| Flute Helix Angle (FHA) | CW|30 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Flute Length | 1-39/64″ |
| Overall Length (OAL) | 5-33/64″ | Standard | DIN|ANSI |
| Thread Cutting Part Length (THL) | 1-1/32″ | Thread Size | 3/4″ - 14 |
| Connection Diameter Machine Side (DCONMS) | 29/32″ |
Product Features
| Family Description | A26563-NPTF3/4 | Country of Origin | Germany |
Shipping Info
Package Weight
1.016
