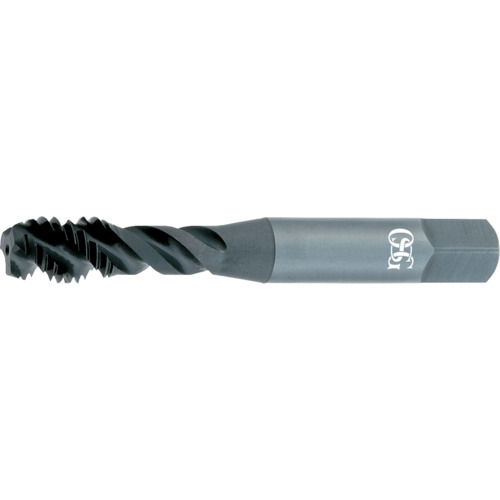

8-32 STI H3 3FX
| Tool Type | STI Tap | Applicable Material | | Steel | Stainless Steel | |
| Style | Semi-Bottoming | Chamfer | 2.5P-3P |
| Thread Diameter Size (TDZ) | #8 | Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | H3 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | STI | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.311″ | Usable Length (LU) | 0.937″ |
| Threads per Inch (TPI) | 32 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2.38″ | Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Cutting Edge Material | HSSE | Series/List # | 302 |
| Flute Count (NOF) | 3 | Thread Size | #8 - 32 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.45000
Package Height
.35000
Package Weight
0.035
