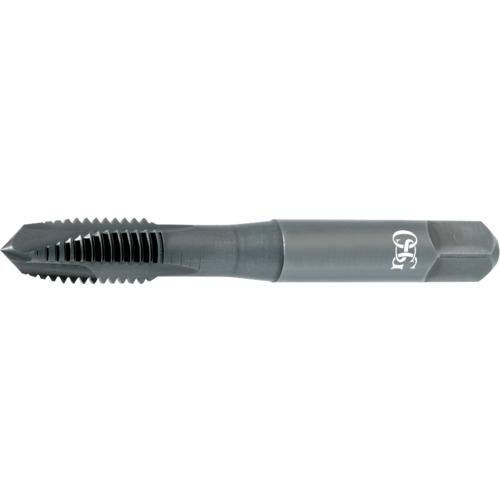

M6X1 STI D3 3S/P PLUG
| Tool Type | STI Tap | Hand Tap | Applicable Material | | Steel | Stainless Steel | |
| Style | Plug | Chamfer | 3.5P-4.5P |
| Thread Diameter Size (TDZ) | M6 | Coating | TiCN |
| Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 1 mm |
| Thread Standard | Metric | Usable Length (LU) | 29 mm |
| Thread Cutting Part Length (THL) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 69 mm | Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Cutting Edge Material | HSSE | Series/List # | 342STI |
| End Shape | Spiral Point | Thread Size | M6 × 1 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
0.05
