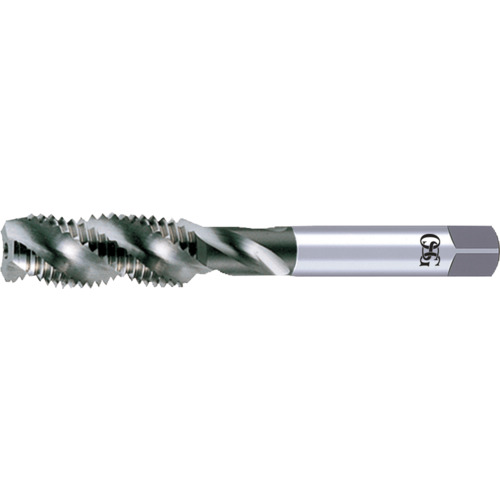

M3X0.5 STI D2 3FX
| Tool Type | STI Tap | Chamfer | 2.5P-3P |
| Style | Semi-Bottoming | Coating | Uncoated |
| Thread Diameter Size (TDZ) | M3 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Tolerance Class (TCTR) | D2 | Thread Pitch (TP) | 0.5 mm |
| Thread Standard | Metric | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 5 mm | Usable Length (LU) | 18 mm |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Cutting Edge Material | HSS | Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Flute Count (NOF) | 3 | Series/List # | S109 |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Thread Size | M3 × 0.5 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Weight
0.01
