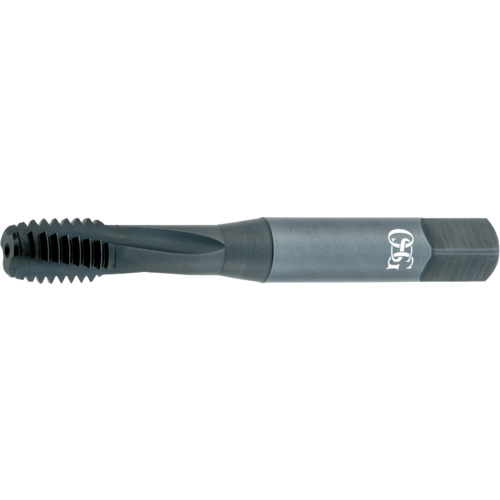

M4 0.7 Dia. - STI - D3-3RX Semi-Bottoming EXO VC10 V Tap
| Tool Type | STI Tap | Chamfer | 2.5P-3P |
| Style | Semi-Bottoming | Coating | TiCN |
| Thread Diameter Size (TDZ) | M4 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 0.7 mm |
| Thread Standard | Metric | Usable Length (LU) | 22 mm |
| Thread Cutting Part Length (THL) | 7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 60 mm | Connection Diameter Machine Side (DCONMS) | 4.92 mm |
| Cutting Edge Material | HSS-PM | Series/List # | 345STI |
| Flute Count (NOF) | 3 | Thread Size | M4 × 0.7 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
