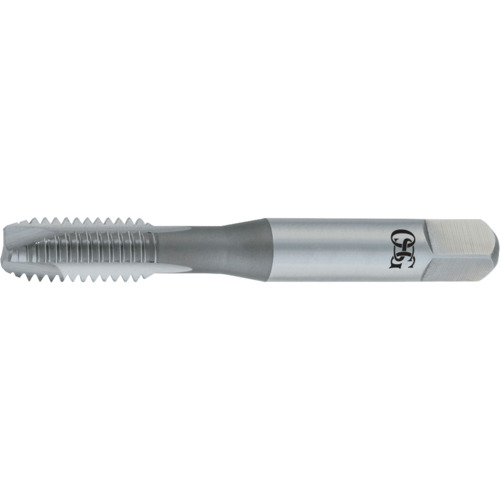

M6 1.00 Dia. - STI - D3-3 FL - Spiral Point Plug Tap
| Tool Type | STI Tap | Hand Tap | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Style | Plug | Chamfer | 3.5P-4P |
| Thread Diameter Size (TDZ) | M6 | Coating | Uncoated |
| Thread Tolerance Class (TCTR) | D3 | Thread Pitch (TP) | 1 mm |
| Thread Standard | Metric | Usable Length (LU) | 29 mm |
| Thread Cutting Part Length (THL) | 17 mm | Measurement Type | Metric |
| Overall Length (OAL) | 69 mm | Connection Diameter Machine Side (DCONMS) | 8.07 mm |
| Cutting Edge Material | HSS | Series/List # | 127 |
| End Shape | Spiral Point | Thread Size | M6 × 1 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.75000
Package Width
.45400
Package Height
.42200
Package Weight
0.025
