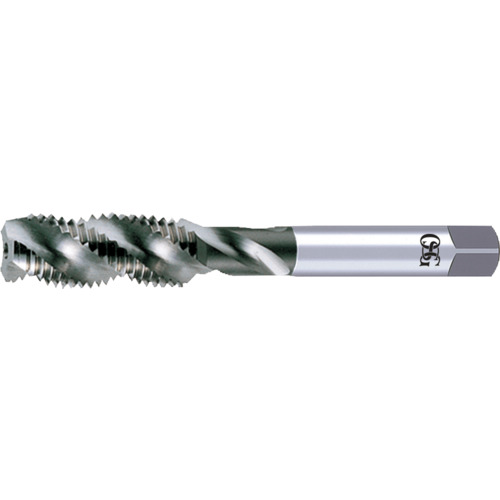

| Tool Type | STI Tap | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Style | Bottoming | Chamfer | 1.5P-2P |
| Thread Diameter Size (TDZ) | #10 | Coating | Uncoated |
| Thread Tolerance Class (TCTR) | H3 | Flute Type | Spiral |
| Thread Standard | STI | Usable Length (LU) | 1″ |
| Thread Cutting Part Length (THL) | 0.417″ | Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 32 | Connection Diameter Machine Side (DCONMS) | 0.255″ |
| Overall Length (OAL) | 2-1/2″ | Series/List # | S108 |
| Cutting Edge Material | HSS | Thread Size | #10 - 32 |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
