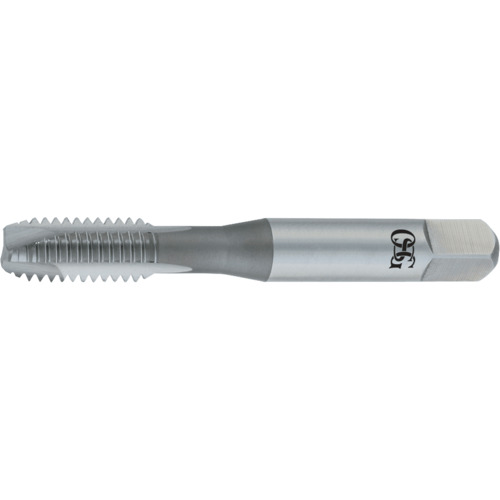

1/2-20 Dia. - STI - H4-3 FL - Spiral Point Plug Tap
| Tool Type | STI Tap | Hand Tap | Flute Count (NOF) | 3 |
| Style | Plug | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/2″ | Chamfer | 3.5P-4.5P |
| Thread Tolerance Class (TCTR) | H4 | Coating | Uncoated |
| Thread Standard | STI | Usable Length (LU) | 1.472″ |
| Thread Cutting Part Length (THL) | 1″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.429″ |
| Overall Length (OAL) | 3.59″ | Series/List # | 125 |
| Cutting Edge Material | HSS | Thread Size | 1/2″ - 20 |
| End Shape | Spiral Point |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
5.00000
Package Width
.90000
Package Height
.85000
Package Weight
0.17
