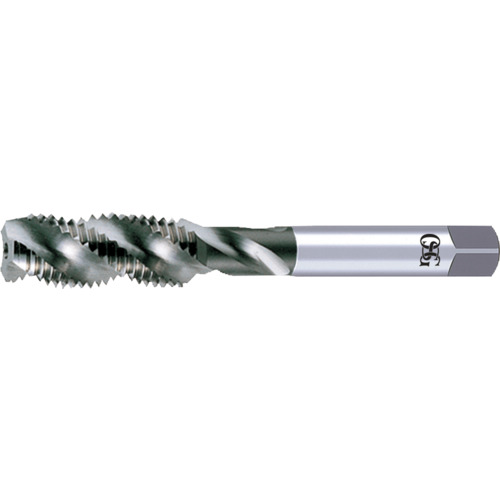

3/4-16 Dia. - STI - H3-4 FL - Spiral Flute Bottoming Tap
| Tool Type | STI Tap | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Style | Bottoming | Chamfer | 1.5P-2P |
| Thread Diameter Size (TDZ) | 3/4″ | Coating | Uncoated |
| Thread Tolerance Class (TCTR) | H3 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | STI | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 1″ | Usable Length (LU) | 2.433″ |
| Threads per Inch (TPI) | 16 | Measurement Type | Inch |
| Overall Length (OAL) | 4.46″ | Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Cutting Edge Material | HSS | Series/List # | S108 |
| Flute Count (NOF) | 4 | Thread Size | 3/4″ - 16 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
4.65000
Package Width
1.20000
Package Height
1.10000
Package Weight
0.375
