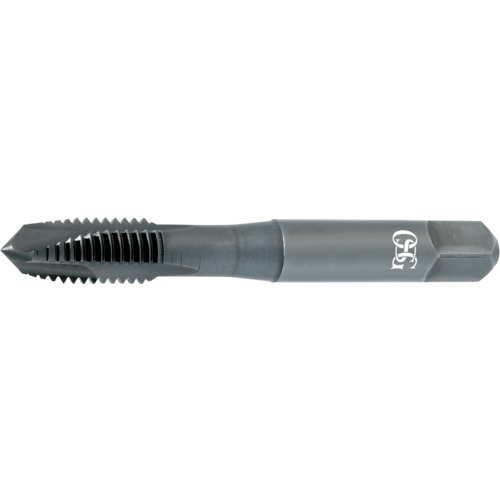

1/4-20 STI H3 3S/P PLG
| Tool Type | STI Tap | Hand Tap | Flute Count (NOF) | 3 |
| Style | Plug | Applicable Material | | Steel | Stainless Steel | |
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | 3.5P-4.5P |
| Thread Tolerance Class (TCTR) | H3 | Coating | Black Oxide |
| Thread Standard | STI | Usable Length (LU) | 1.133″ |
| Thread Cutting Part Length (THL) | 0.708″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 20 | Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Overall Length (OAL) | 2.72″ | Series/List # | 301 |
| Cutting Edge Material | HSSE | Thread Size | 1/4″ - 20 |
| End Shape | Spiral Point |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.40000
Package Weight
0.05
