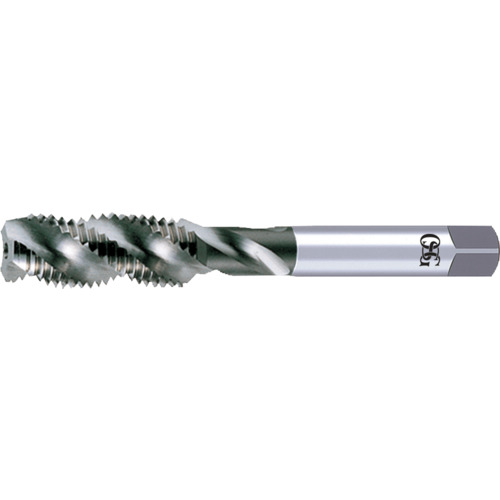

4-40 STI H2 2FX BOTT
| Tool Type | STI Tap | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Style | Bottoming | Chamfer | 1.5P-2P |
| Thread Diameter Size (TDZ) | #4 | Coating | Uncoated |
| Thread Tolerance Class (TCTR) | H2 | Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | STI | Flute Type | Spiral |
| Thread Cutting Part Length (THL) | 0.251″ | Usable Length (LU) | 0.688″ |
| Threads per Inch (TPI) | 40 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2″ | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Cutting Edge Material | HSS | Series/List # | S108 |
| Flute Count (NOF) | 2 | Thread Size | #4 - 40 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.03000
Package Width
.32000
Package Height
.44000
Package Weight
0.05
