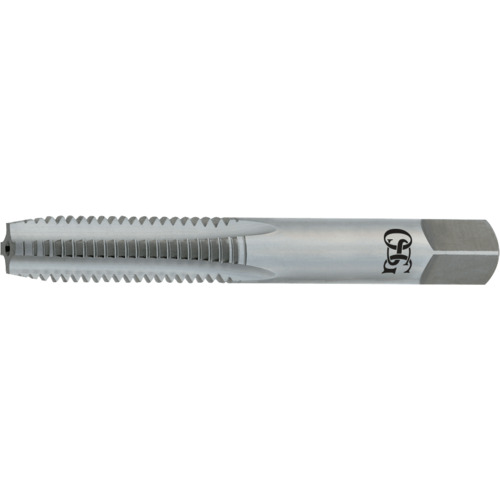

1/4-28 Dia. - H2-3 FL - HSS - Bright-Bottoming-Dia. - STI - Tap
| Tool Type | STI Tap | Flute Count (NOF) | 3 |
| Style | Bottoming | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | H2 | Coating | Uncoated |
| Thread Standard | STI | Usable Length (LU) | 1.322″ |
| Thread Cutting Part Length (THL) | 0.751″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 28 | Connection Diameter Machine Side (DCONMS) | 0.317″ |
| Overall Length (OAL) | 2.72″ | Series/List # | 126 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 28 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.50000
Package Height
.50000
Package Weight
0.05
