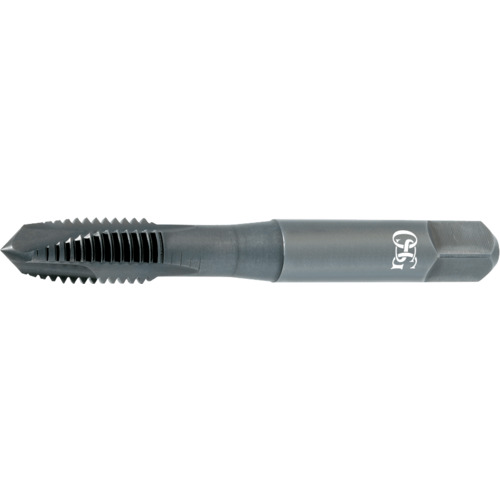

4-40 Dia. - STI - H2-3 FL - Spiral Point Plug EXO VC10 V Tap
| Tool Type | STI Tap | Hand Tap | Flute Count (NOF) | 3 |
| Style | Plug | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Thread Diameter Size (TDZ) | #4 | Chamfer | 4.5P-5.5P |
| Thread Tolerance Class (TCTR) | H2 | Coating | TiCN |
| Thread Standard | STI | Usable Length (LU) | 0.751″ |
| Thread Cutting Part Length (THL) | 0.413″ | Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 40 | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Overall Length (OAL) | 2″ | Series/List # | 314 |
| Cutting Edge Material | HSS-PM | Thread Size | #4 - 40 |
| End Shape | Spiral Point |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.90000
Package Width
.40000
Package Height
.30000
Package Weight
0.015
