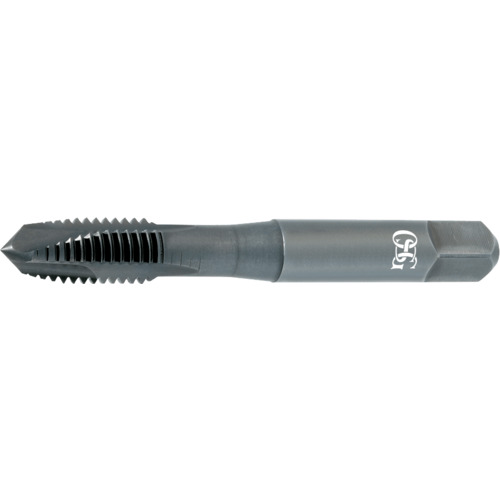

M2.5X0.45 STI D2 2S/P S/O
| Tool Type | STI Tap | Hand Tap | Applicable Material | | Steel | Stainless Steel | |
| Style | Plug | Chamfer | 3.5P-4.5P |
| Thread Diameter Size (TDZ) | M2.5 | Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | D2 | Thread Pitch (TP) | 0.45 mm |
| Thread Standard | Metric | Usable Length (LU) | 16 mm |
| Thread Cutting Part Length (THL) | 7 mm | Measurement Type | Metric |
| Overall Length (OAL) | 49 mm | Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Cutting Edge Material | HSSE | Series/List # | 342STI |
| End Shape | Spiral Point | Thread Size | M2.5 × 0.45 |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.02
