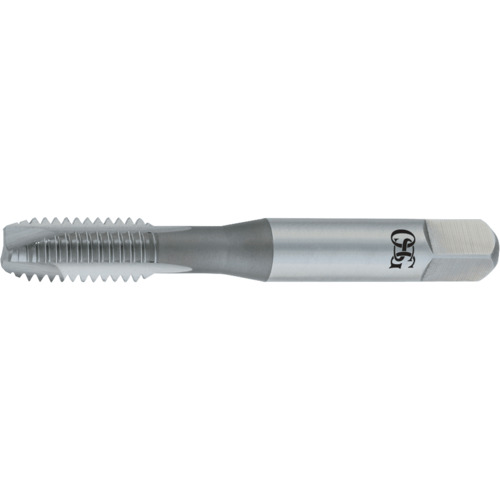

3/4-16 STI H3 3S/P PLUG TAP

| Tool Type | STI Tap | Hand Tap | Flute Count (NOF) | 3 |
| Style | Plug | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 3/4″ | Chamfer | 3.5P-4.5P |
| Thread Tolerance Class (TCTR) | H3 | Coating | Uncoated |
| Thread Standard | STI | Usable Length (LU) | 1.771″ |
| Thread Cutting Part Length (THL) | 1.417″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 16 | Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Overall Length (OAL) | 4.46″ | Series/List # | 125 |
| Cutting Edge Material | HSS | Thread Size | 3/4″ - 16 |
| End Shape | Spiral Point |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.90000
Package Width
1.20000
Package Height
1.15000
Package Weight
0.445
