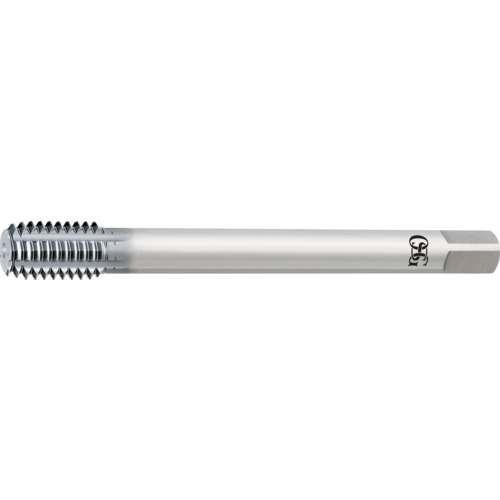

| Tool Type | STI Tap | Chamfer | 2.5P |
| Style | Semi-Bottoming | Thread Pitch (TP) | 0.5 mm |
| Thread Diameter Size (TDZ) | M3 | Usable Length (LU) | 21.3 mm |
| Thread Tolerance Class (TCTR) | D3 | Measurement Type | Metric |
| Thread Standard | Metric | Connection Diameter Machine Side (DCONMS) | 3.58 mm |
| Thread Cutting Part Length (THL) | 7 mm | Standard | DIN |
| Overall Length (OAL) | 63 mm | Series/List # | 16360 |
| Cutting Edge Material | HSSCo | Thread Size | M3 × 0.5 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
0.015
