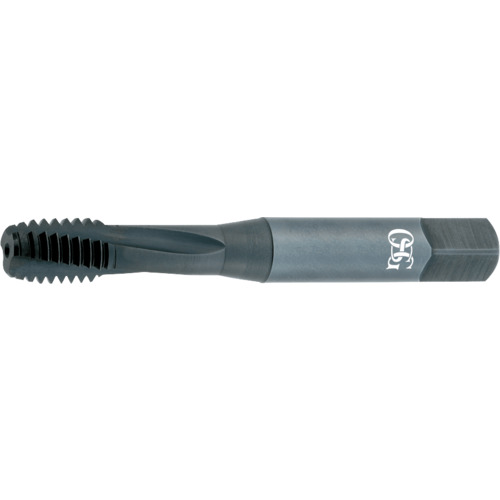

4-40 STI H2 2RX
| Tool Type | STI Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Style | Semi-Bottoming | Chamfer | 2.5P-3P |
| Thread Diameter Size (TDZ) | #4 | Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | H2 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | STI | Usable Length (LU) | 0.688″ |
| Thread Cutting Part Length (THL) | 0.251″ | Measurement Type | Wire Gauge |
| Threads per Inch (TPI) | 40 | Connection Diameter Machine Side (DCONMS) | 0.14″ |
| Overall Length (OAL) | 2.05″ | Series/List # | 315 |
| Cutting Edge Material | HSS-PM | Thread Size | #4 - 40 |
| Flute Count (NOF) | 2 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.30000
Package Weight
0.01
