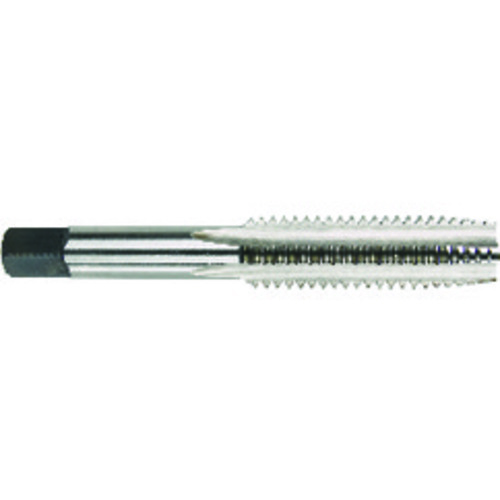

2072 4-40 STI BOT H1 3FL BRT
| Tool Type | STI-Straight Flute | Chamfer | Bottom |
| Style | Bottom | Coating | Uncoated |
| Thread Diameter Size (TDZ) | #4 | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | H1 | Cutting Direction (HAND) | Right |
| Thread Standard | NC | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 11/16″ | Usable Length (LU) | 11/16″ |
| Threads per Inch (TPI) | 40 | Measurement Type | Wire Gauge |
| Overall Length (OAL) | 2″ | Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Cutting Edge Material | HSS | Series/List # | 2072 |
| Flute Count (NOF) | 3 | Thread Size | #4 - 40 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.00000
Package Width
.25000
Package Height
.25000
Package Weight
0.02
