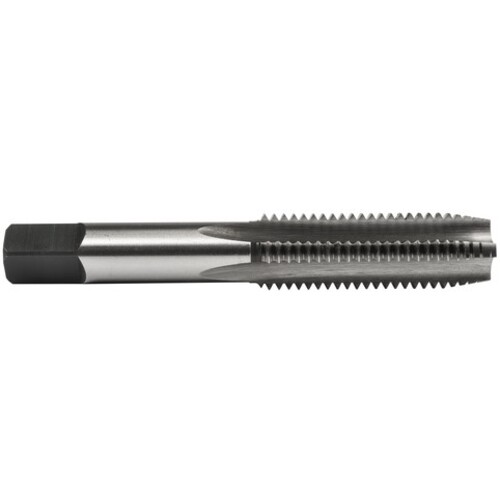

3/8″- 16 4 Flute Plug Union Butterfield HSS Bright UNC Hand Tap, Screw Thread Insert Straight Flute ANSI E-code # 15723/8X16H3NO2
| Tool Type | Hand Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Style | Plug | Coating | Uncoated |
| Thread Diameter Size (TDZ) | 3/8″ | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3B|H3 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NC | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 16 | Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Overall Length (OAL) | 3-3/8″ | Standard | ANSI |
| Cutting Edge Material | HSS | Length Group | 1.5D |
| Flute Count (NOF) | 4 | Thread Size | 3/8″ - 16 |
Product Features
| Family Description | E-code # 15723/8X16H3NO2 | Country of Origin | USA |
Shipping Info
Package Weight
0.099
