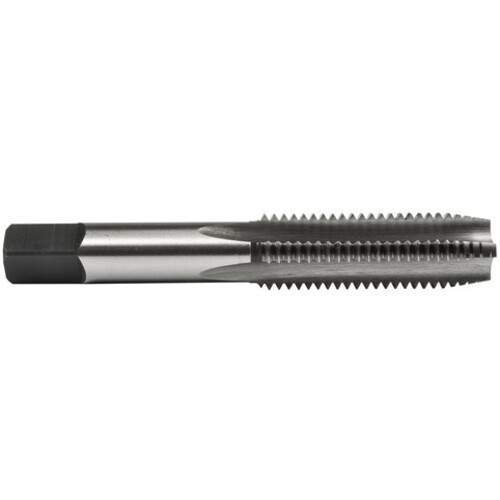

1/2″- 13 4 Flute Plug Union Butterfield HSS Bright UNC Hand Tap, Screw Thread Insert Straight Flute ANSI E-code # 15721/2X13H3NO2

Additional Tariff Surcharge of 8 %
| Tool Type | Hand Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Style | Plug | Coating | Uncoated |
| Thread Diameter Size (TDZ) | 1/2″ | Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3B|H3 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NC | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-13/16″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 13 | Connection Diameter Machine Side (DCONMS) | 0.48″ |
| Overall Length (OAL) | 3-13/16″ | Standard | ANSI |
| Cutting Edge Material | HSS | Length Group | 1.5D |
| Flute Count (NOF) | 4 | Thread Size | 1/2″ - 13 |
Product Features
| Family Description | E-code # 15721/2X13H3NO2 | Country of Origin | USA |
Shipping Info
Package Weight
0.19
