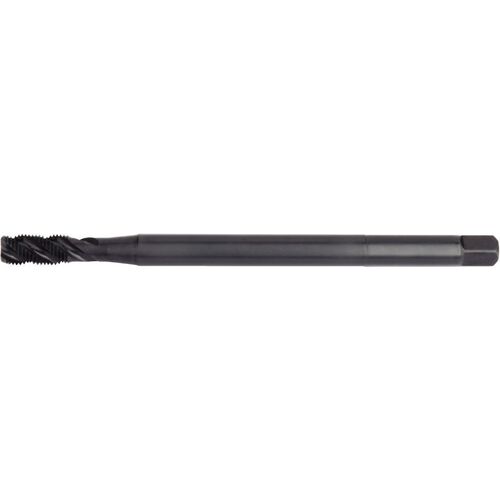

1/4-20 H3 3F SEMI-BOTT SPFL 6
Additional Tariff Surcharge of 8.5 %
| Thread Diameter Size (TDZ) | 1/4″ | Tool Type | High Performance Tap |
| Threads per Inch (TPI) | 20 | Chamfer | 2P-3P |
| Thread Standard | NC | Coating | Black Oxide |
| Overall Length (OAL) | 6″ | Style | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 0.63″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees|CW | Flute Type | Spiral |
| Cutting Edge Material | HSSCo | Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | H3 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.023
