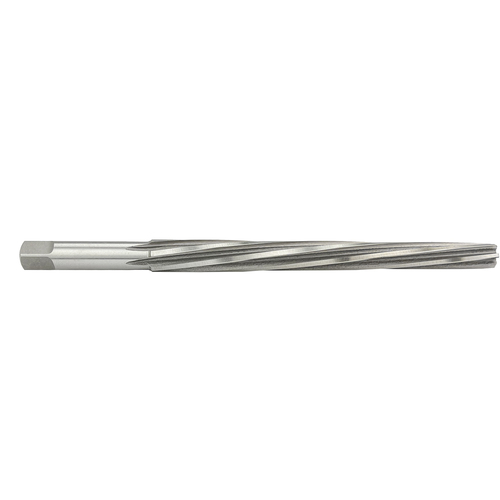

8 Dia-HSS-Straight Shank/Spiral Flute Taper Pin Reamer
| Tool Type | Taper Pin Reamer | Flute Type | Spiral |
| Size | #8 | Shank Type | Round |
| Cutting Diameter Minimum (DCN) | 0.3971″ | Large End Diameter | 0.505″ |
| Cutting Diameter Maximum (DCX) | 0.505″ | Small End Diameter | 0.3971″ |
| Length Chip Flute (LCF) | 5-3/16″ | Cutting Edge Material | HSS |
| Overall Length (OAL) | 7-3/16″ | Measurement Type | Wire Gauge |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Remarks | •Taper Pin Reamers •High Speed Steel •For reaming tapered holes that receive standard taper pins •Reamers have a taper of 1/4″ per foot • The point of each reamer will enter hole reamed by next smaller size •SPIRAL FLUTE - With left hand spiral for hand use in harder to ream materials | Country of Origin | China |
Shipping Info
Package Length
7.30000
Package Width
.70000
Package Height
.70000
Package Weight
0.25
