#XNS59-5/16-24 Thread - Screw
Additional Canadian Tariff of 25 %
| Thread Size | 5/16″-24 | Left Hand Thread Length | 0.41″ |
| Overall Length (OAL) | 1.12″ | Model Number | XNS59 |
| Right Hand Thread Length | 0.47″ | Tool Type | Screw |
Product Features

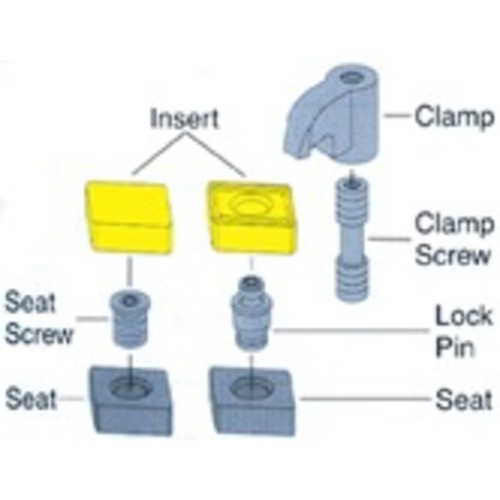

| Remarks | •Differential Screws •INSERT Either conventional type or chipbreaker type may be used.LOCK PINA solid locking pin for permanent locating of the insert.SHIM SCREWReusable shim screw locks carbide shim into toolholder.CARBIDE SHIM Forms a firm seat for insert. Fastened to the shank, but easily replaceable. Protects against damage to toolholder.CLAMP Maximum retention clamp is made of high alloy steel, heat treated. Broad clamp nose provides positive clamping action. Clamp is positioned to allow for maximum insert retention, with or without chipbreaker.CLAMP SCREW Rugged Clamp Screw provides maximum clamping strength.CHIPBREAKER Solid carbide, for use when chip control is needed. Available in a range of standard chipbreaker widths. | Country of Origin | USA |
Shipping Info
Package Length
.90000
Package Width
.30000
Package Height
.30000
Package Weight
0.01
