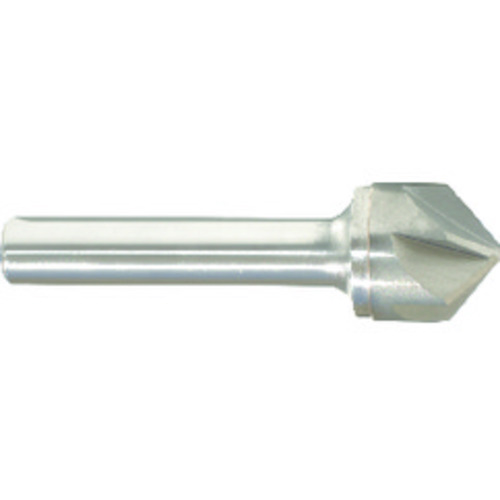

5754 1/2″ 100' 6FL CTSK
Countersink; 1/2″ Dia. × 2-1/2″ OAL × 1/4″ Shank Dia. ; 6 FL ; 100 Degrees ; Carbide ; Uncoated ; Series 5754
| Tool Type | Countersink | Point Angle (SIG) | 100 Degrees |
| Cutting Diameter (DC) | 1/2″ | Coating | Uncoated |
| Overall Length (OAL) | 2-1/2″ | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Series/List # | 5754 |
| Flute Count (NOF) | 6 |
Product Features
| Remarks | •Cutting edge geometry designed to reduce chatter and harmonics. •Six flutes allow higher feed rates and provide longer tool life due to distributing the cutting load over a greater number of teeth. •The 1/4 diameter is solid carbide.&NewLIne;•The larger diameters are brazed construction. •Carbide offers excellent wear resistance, heat resistance and rigidity.&NewLine•Recommended for abrasive materials, difficult-to-drill materials and increased tool life in production applications. •STANDARD PACKAGE All sizes 1 each | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.50000
Package Height
.50000
Package Weight
0.142
